Description



The Edis EP56-N Mobile Interactive Projector turns any standard floor or soft mat into a fully interactive, responsive learning space. Unlike expensive, fixed sensory rooms, our unit is completely mobile—meaning it can roll from a standard Key Stage 1 classroom into an intervention space in seconds.

How it targets the 4 Core Areas of SEND Need:

  • Sensory & Physical: Movement-type games provide calming proprioceptive input and gross motor skill practice.
  • Speech & Communication: Integrates seamlessly with our Ed-Cast Oracy Microphone Packs, allowing students to vocalize responses and record speech progress directly during active play. [1, 2]

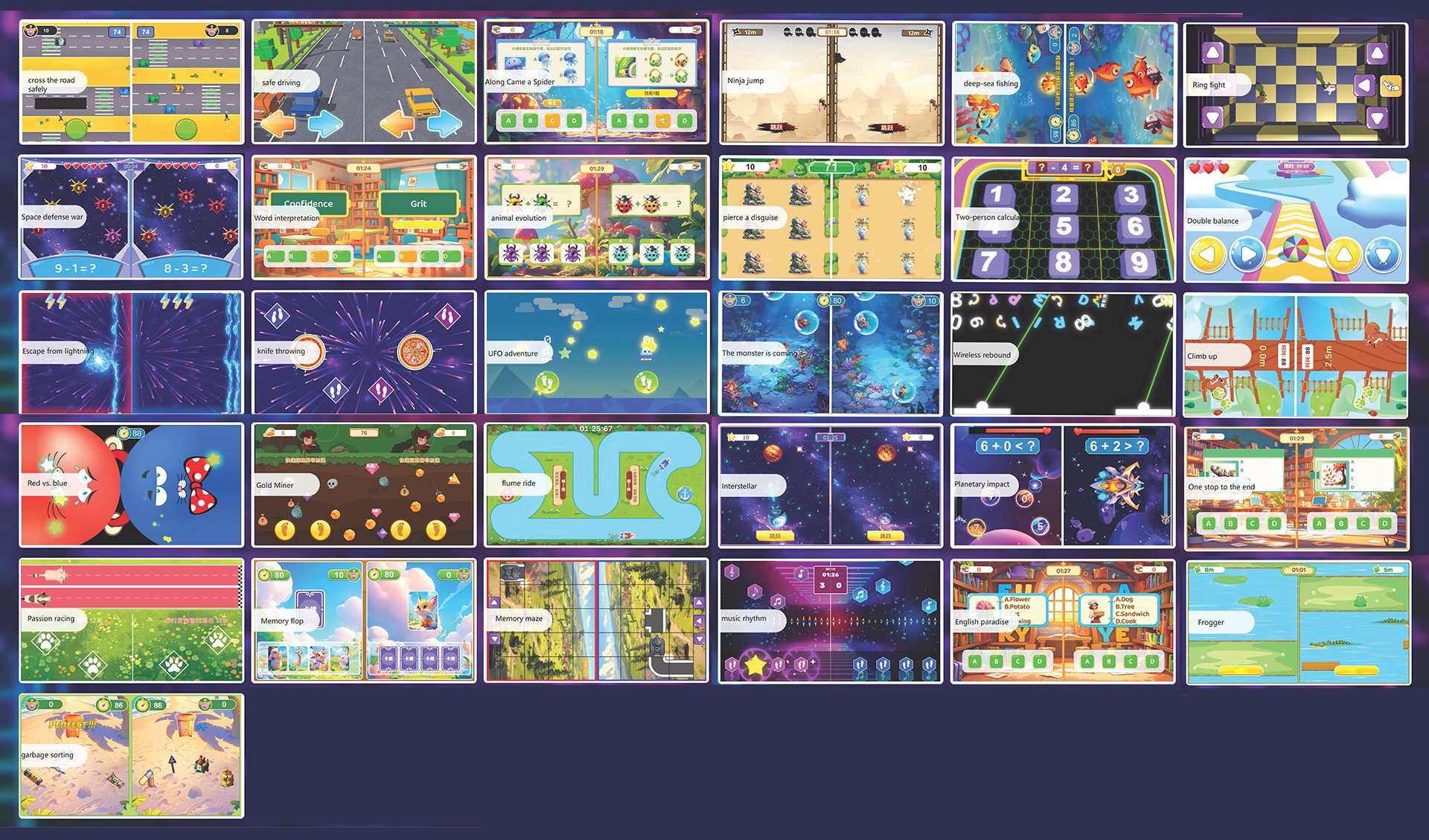

  • Cognition & Learning: Kinesthetic math and word games remove the anxiety of fine-motor writing, helping dyslexic and dyscalculic learners map abstract concepts using their whole bodies.

We have built a comprehensive library of ready-to-use SEND Lesson Plans mapped directly to the National Curriculum framework to minimize teacher workload.

These units are fully eligible for purchase via Devolved Formula Capital, Pupil Premium, or specific SEND funding streams.

EM1050004







Mobile inter active projection machine

EP56-N Mobile "All-in-One" interactive projectors can be placed anywhere indoors or outdoors with radar laser positioning sensor, fast and accurate capture system. Ideal for schools to move between locations in classrooms or outdoors or it can also be used in commercial settings for restaurants, catering. night time entertainment venues etc.











These dimensions are suitable for host of scenarios.The laser ranging radar enables 360-degree scanning within a 16-meter radius on a 2D plane, with a sampling frequency of up to 8 kHz, generating a planar point cloud feedback system for the surrounding space

EM10505



EM1050004



lnteractive experiences

Floor projection creates interactive experiences that engage audiences in new and exciting ways. For example, people can interact with projected images by walking, dancing, or moving around the image.







Weather-resistant

Many outdoor venues are exposed to the elements, such as rain, wind, and sun. The EP65-N is designed to be weather-resistant, making it a reliable option for outdoor everts. Outdoor spaces making it possible to create larger & more dramatic visualsthat can beviewed from a distance







Specification



Display Technology

3LCD

Panel Dimensions

0.59-inch polycrystalline silicon active matrix TFT LCD panel x3

Resolution

1280x800 (Scaled for 1920x1080/1920x1200)

pixel

1.024,000 pixel

Lens

Digital Zoom (1.35x / Motorized Focus)

Light Source Type

laser

Light Source Lifespan*1 20,000 hours (Standard/Quiet); 30,000 hours (Long Life 1); 50,000 hours (Long Life 2)
Brightness*2 4200lm
Audio Output 16W
Projection ratio 0.3:1
Noise 31dB to 26dB (Standard Best); 31dB (Long Service Life 1)
HDCR Support
Accentualizer Support
DICOM Simulation Mode*3 Support
Trapezoidal correction Manual Vertical/Horizontal Trapezoidal Correction
Edge correction Support
Wireless Function Supported (requires optional USB wireless adapter USB-WL-5G)
Operating Humidity 0~40℃
Power Supply AC100--240V
Power consumption 230W
Standby power consumption 0.5W(Energy-saving mode)
Language Supports 20+ global languages
Integration Support
Capture device Radar
Outer casing 1.5MMGalvanized sheet
Dimension 517mm*415mm*1200mm
Weight 29.65kg
